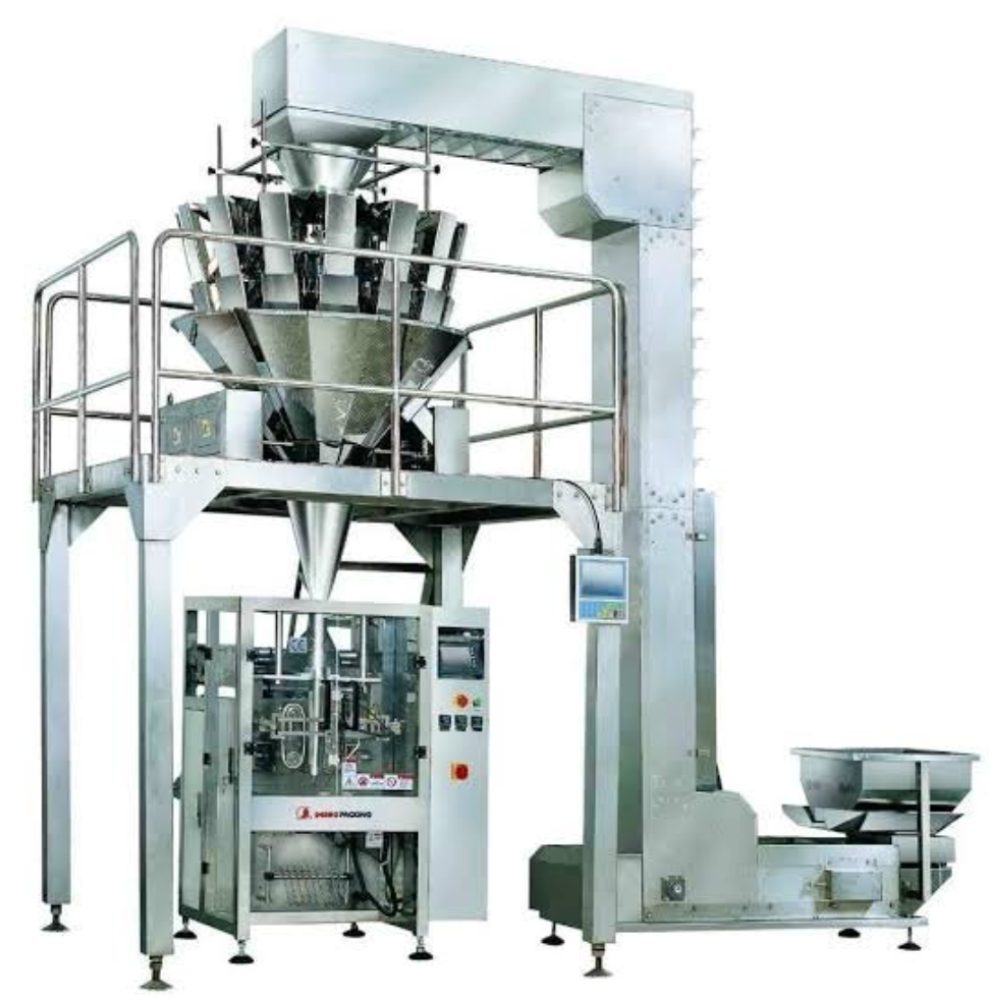

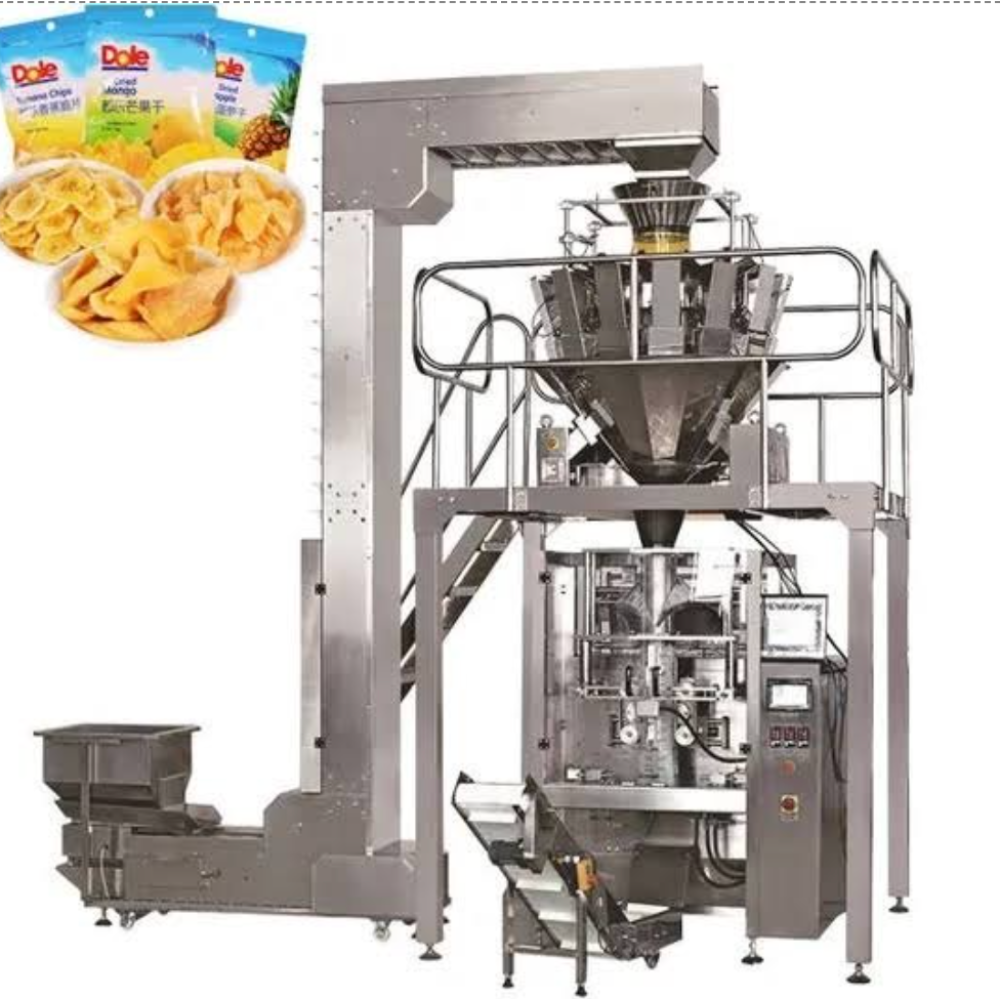

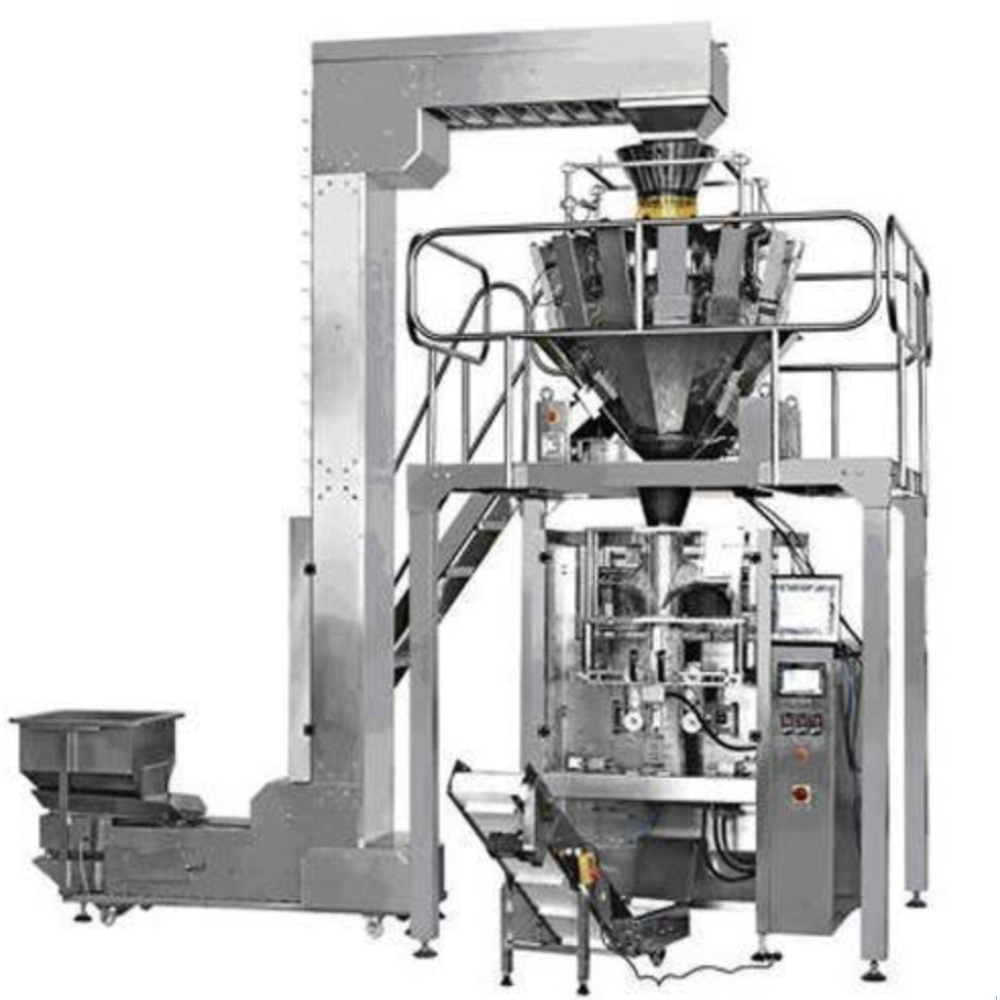

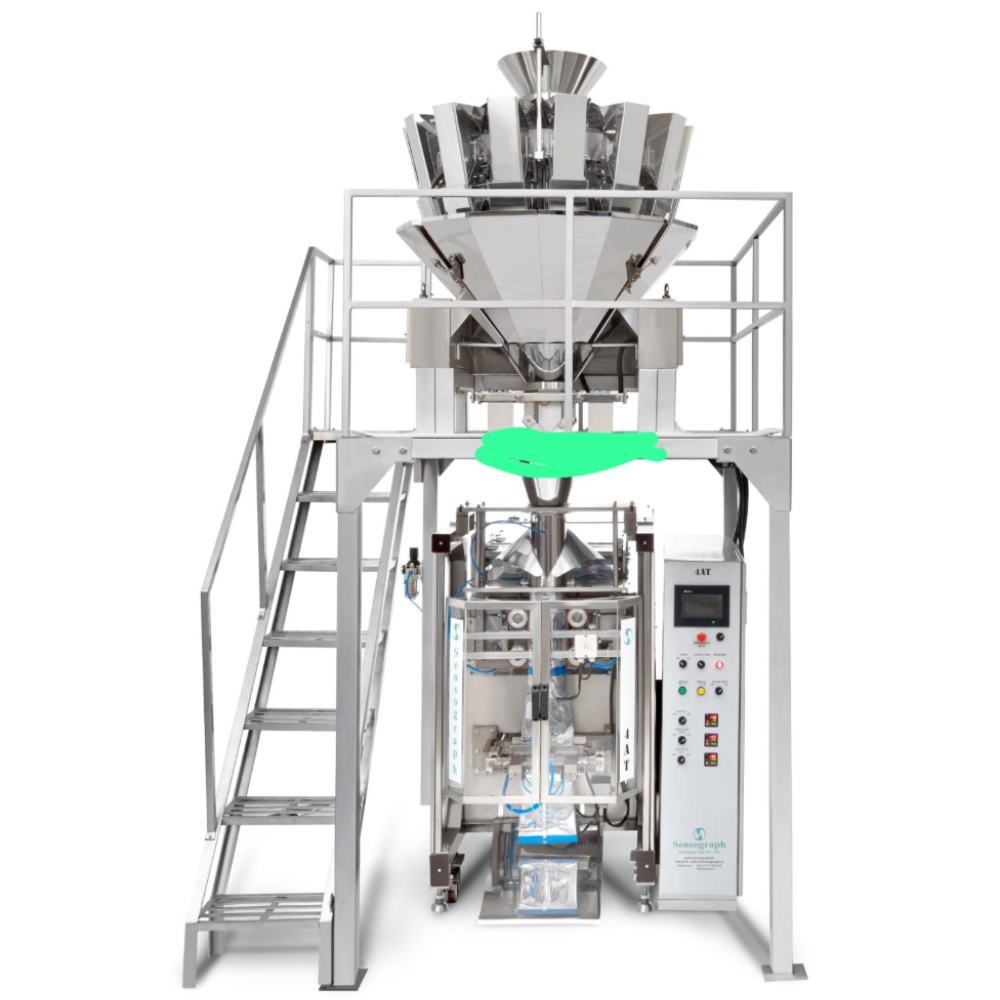

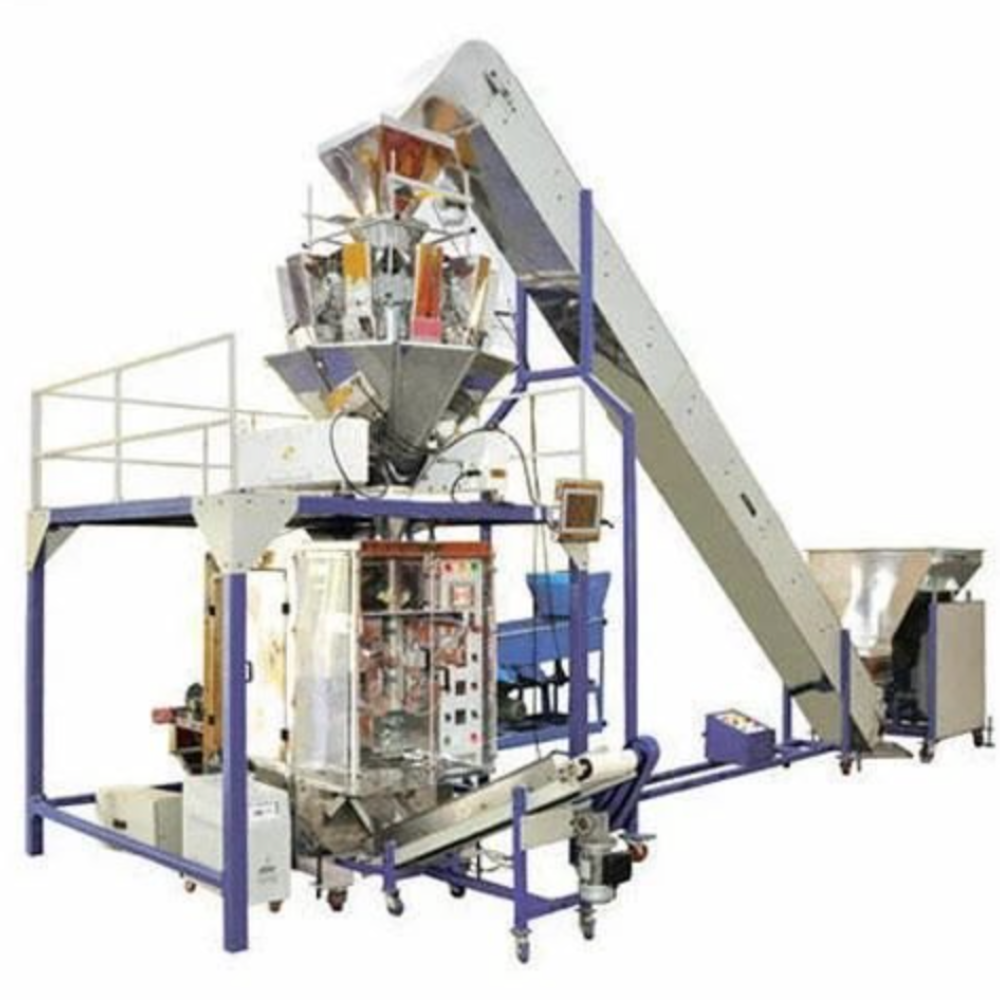

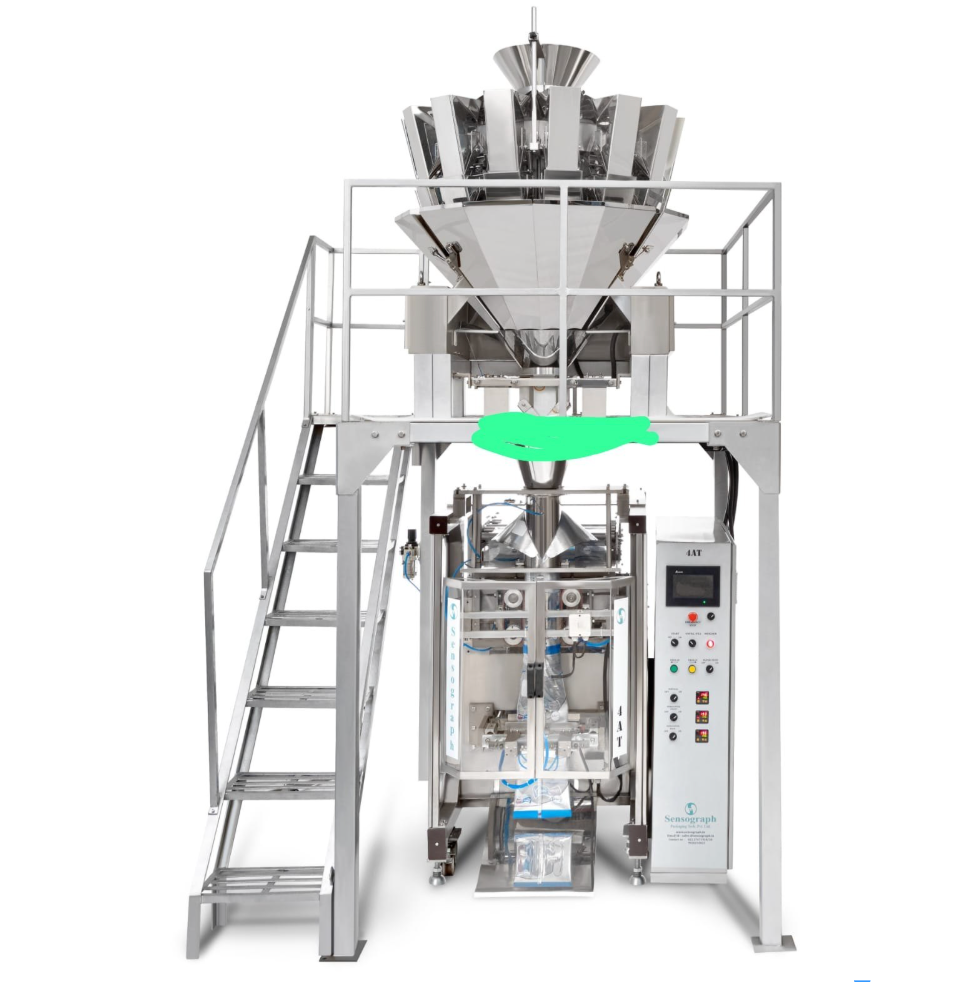

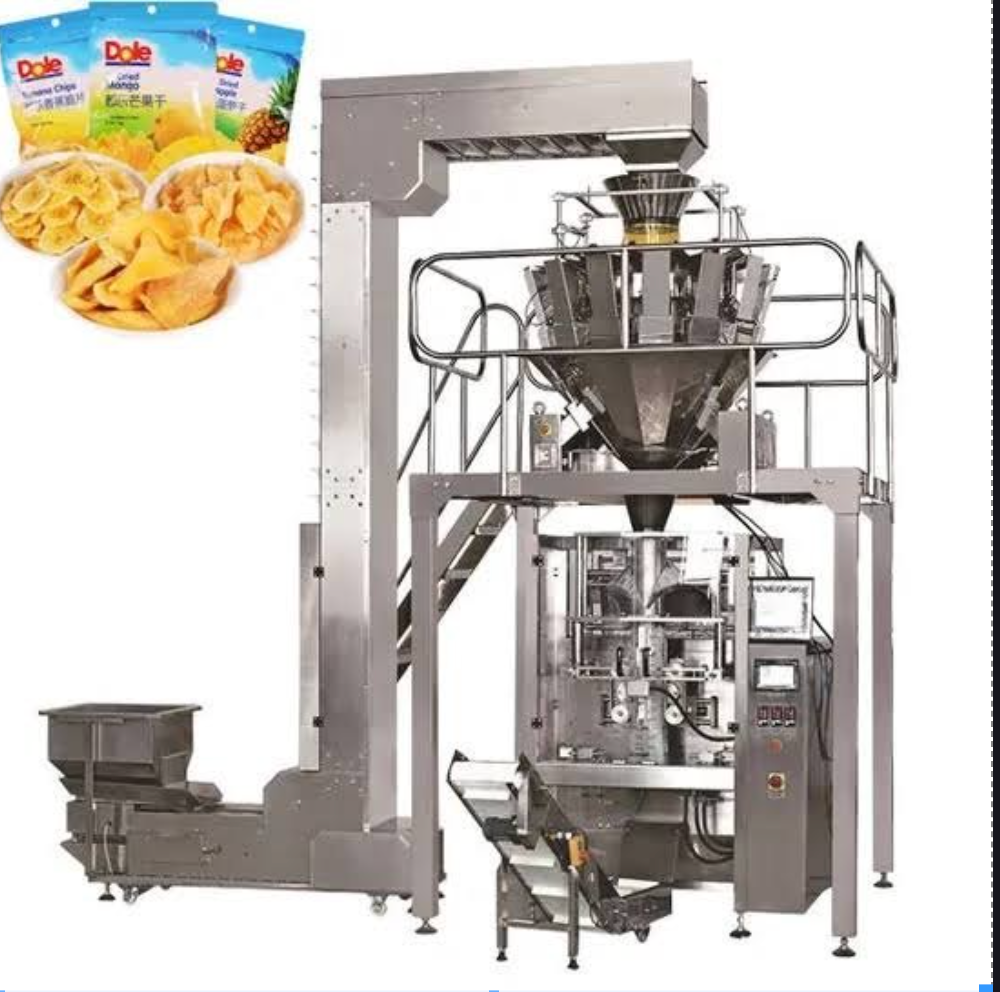

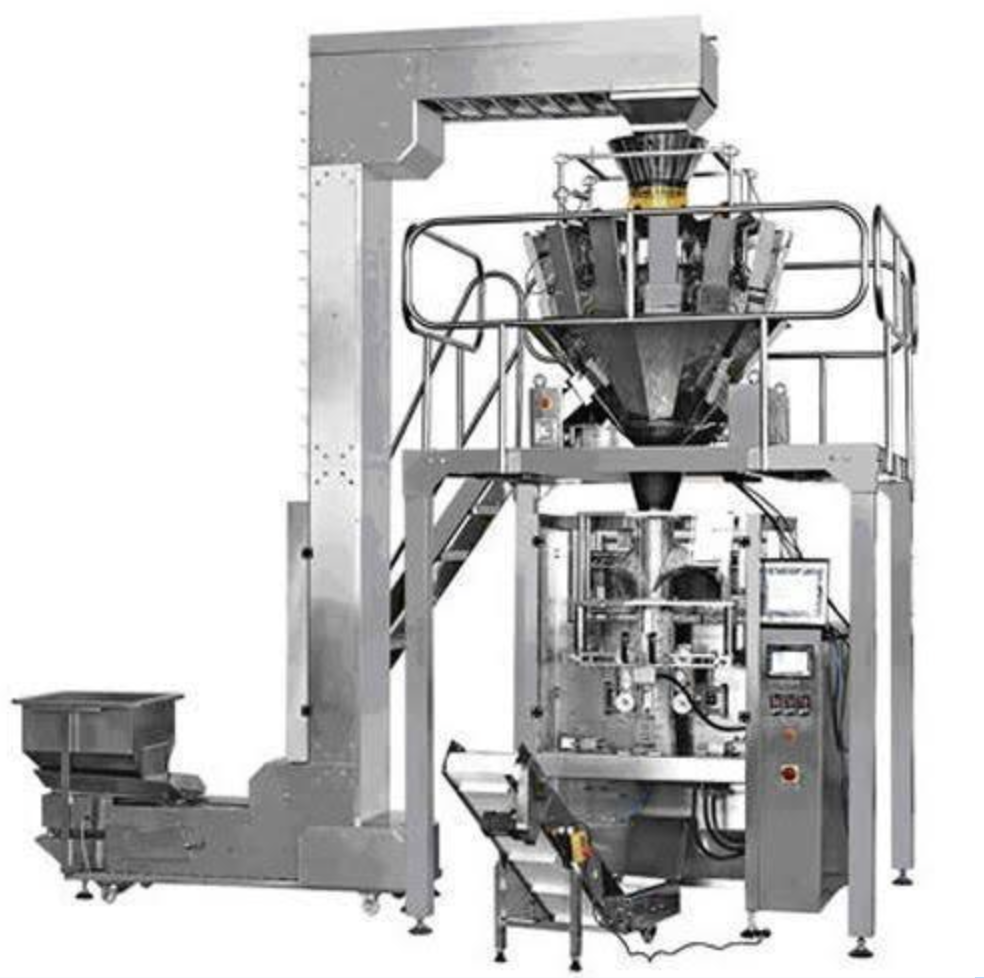

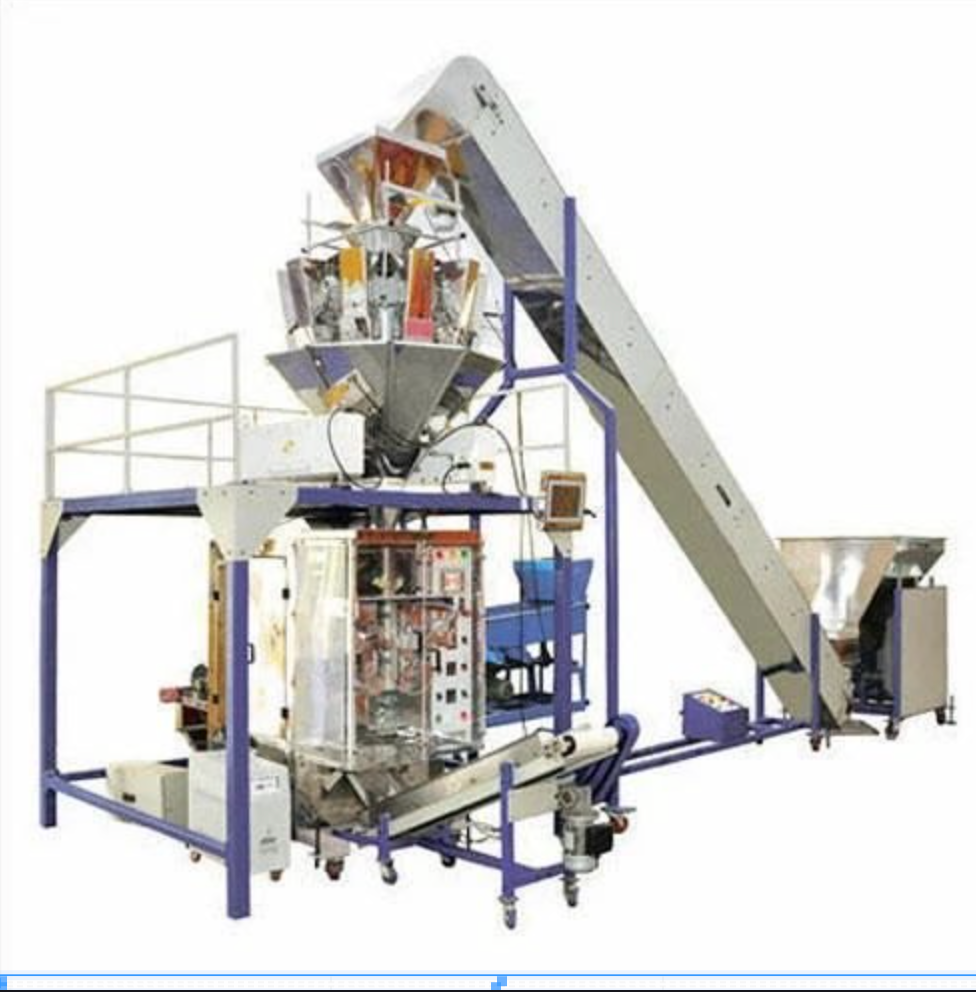

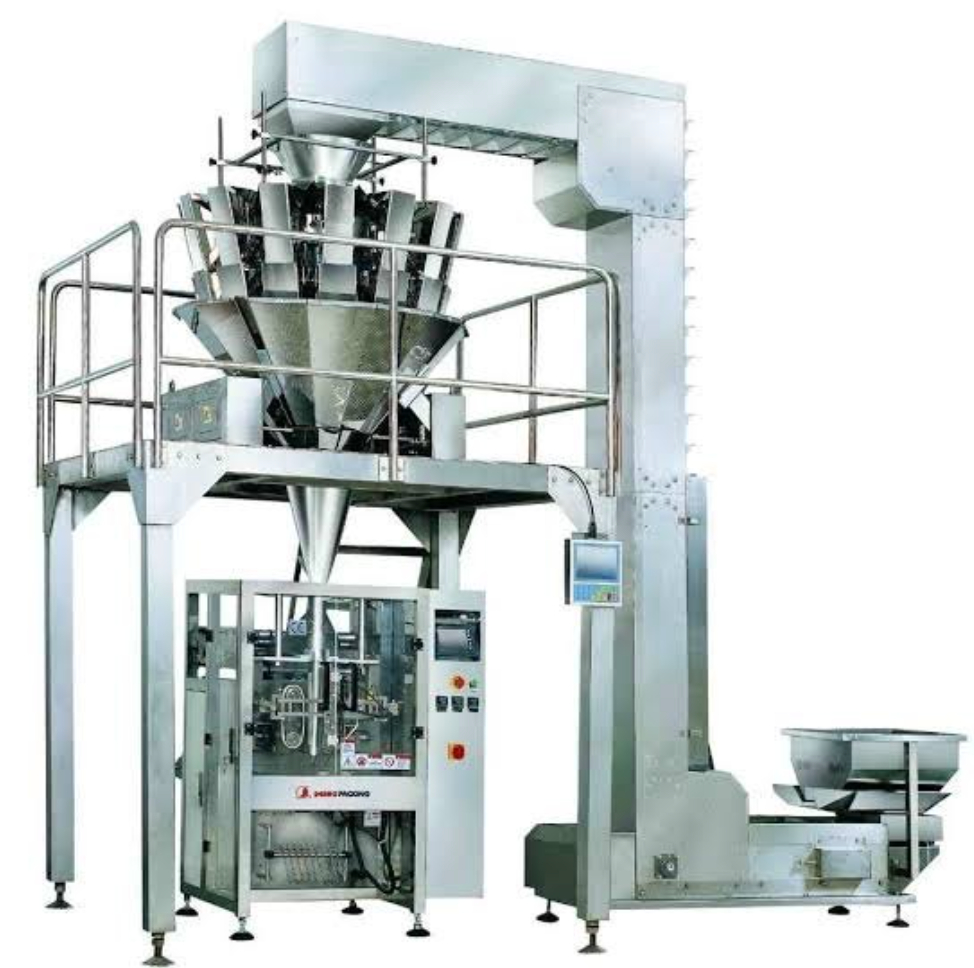

This automated system uses a multihead weigher (10, 14, 20, or more heads) that simultaneously measures product portions, selecting the best combination for target weight via computer algorithms for high speed and precision, then drops it into a Vertical Form Fill Seal (VFFS) unit which forms, fills, seals, and cuts the pouch from a film roll. It’s used for snacks, grains, nuts, candy, frozen foods, and more, offering high throughput and efficiency. Key Features:
- Multi-Head Weighing: Multiple load cells/heads for fast, accurate combination weighing.
- VFFS System: Forms pouches from film rolls (Pillow, Gusseted, etc.).
- PLC Control & Touchscreen: Easy operation, data statistics, recipe storage, and multi-language support.
- Stainless Steel Construction: IP65/waterproof for hygiene and easy cleaning.
- Digital Sensors: Enhance speed, accuracy, and anti-jamming.
- Automatic Functions: Feeding, dosing, filling, sealing, date printing, and conveying.
Typical Specifications:
- Heads: 10, 14.
- Accuracy: ±0.2g to ±1g (product dependent).
- Speed: 20-100+ packs/min (dry run).
- Pouch Size: Width 80-400mm, Length adjustable.
- Pouch Weight: 10g to 2kg (varies by model/product).
- Power: 230V/440V, 2.5-3.5kW (single/three phase).
- Material: SS304 (contact parts).
- Film Type: Heat-sealable laminated rolls (BOPP, PET+PE, etc.).
Applications:
- Foods: Chips, nuts, candy, grains, pulses, frozen foods, biscuits.
- Other: Small hardware, pet food.
